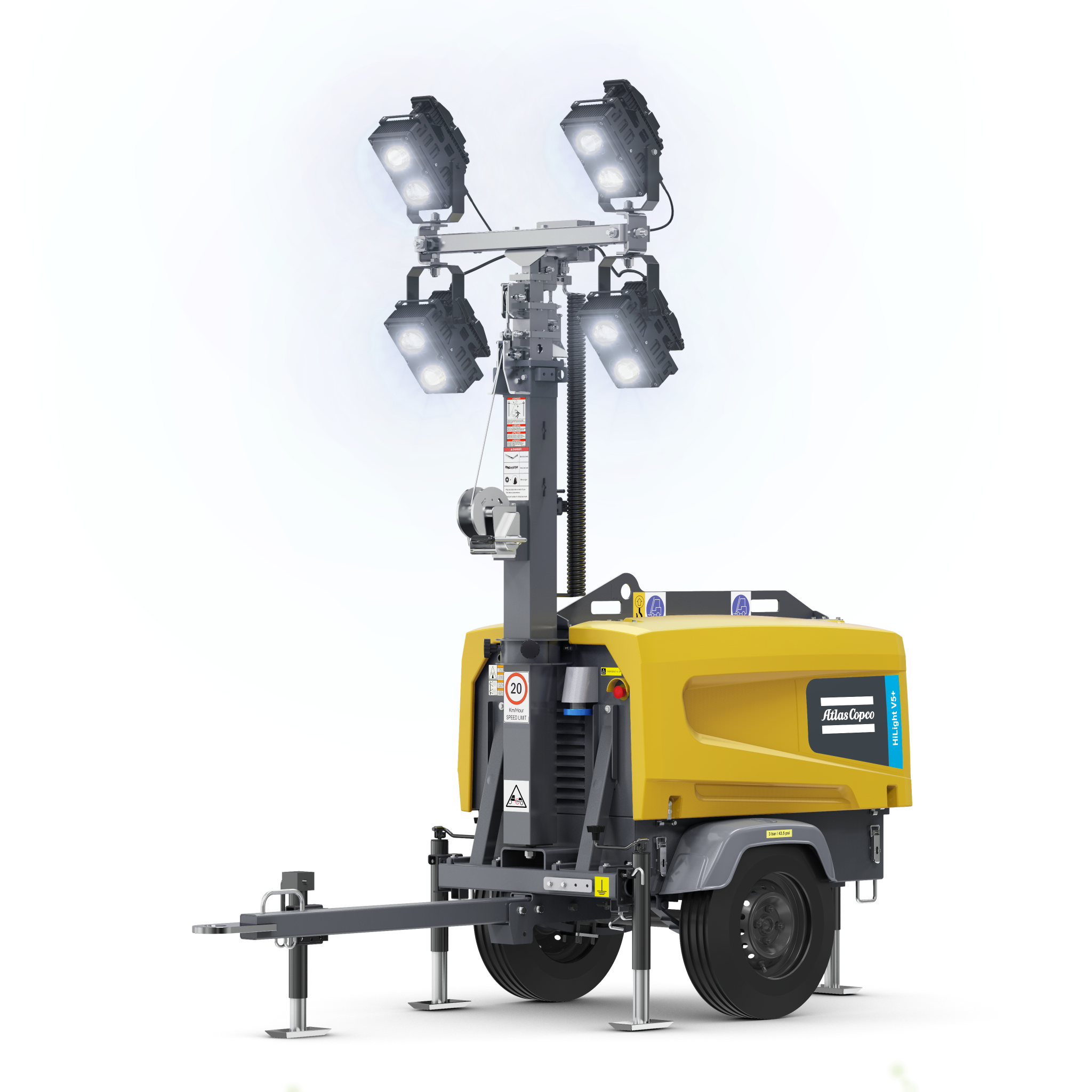

Lighting Tower


Technical Data QLT M10

Lamps Four metal hallide
Wattage 1000W per lamp
Luminosity 7614 Sq mtr with 2 FC
Output Power 50 Hz
Output 6 Kw
Voltage 220 V
Amperage 25 A @ 120 V
Voltage Regulation +\-5%, no load to full load
Receptacles 200v Universal
Engine Type 3-cylinder, 4 cylinder, liquid - cooled diesel
Engine Model Kubota, Diesel D1105-E3BG
Engine speed 1500gm
Engine EPA rating Tier 4
Generator type Brushless
Generator insulation H
Maximum power output 9 Kw
Sound level at maximum 71 dBA @ 7m
Fuel tank capacity 114L
Runtime before refueling 70hrs.
Battery 12 V dc
Dimensions(in oeration) 3352mm x 2815 x 3.810mm
Weight 810 kgs
